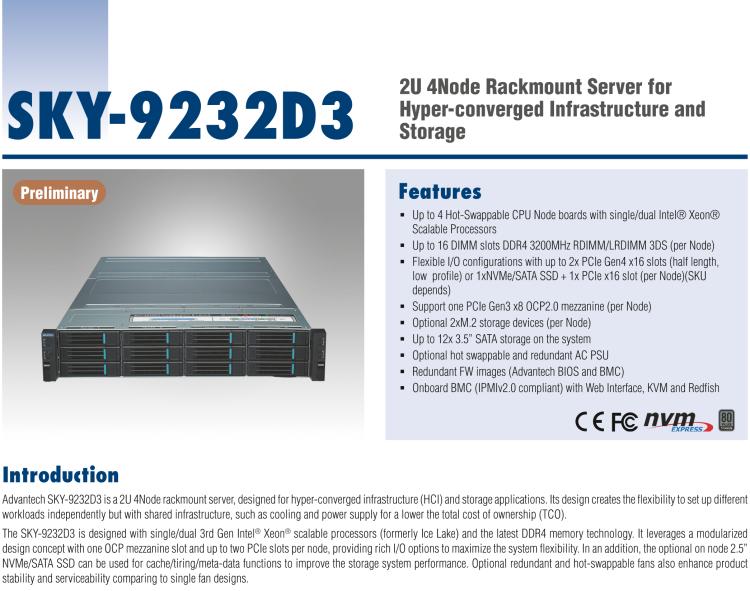

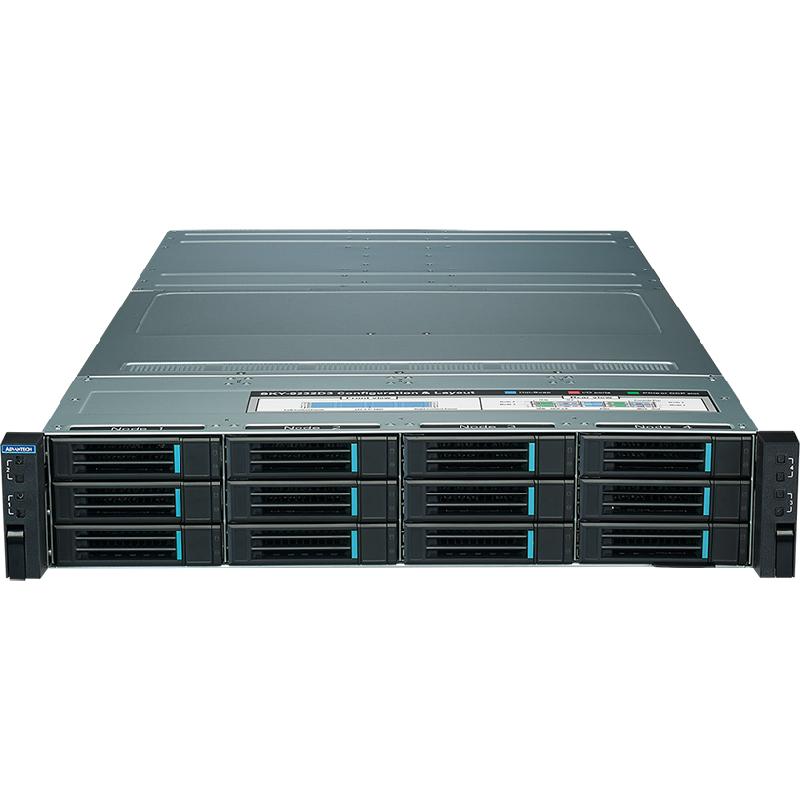

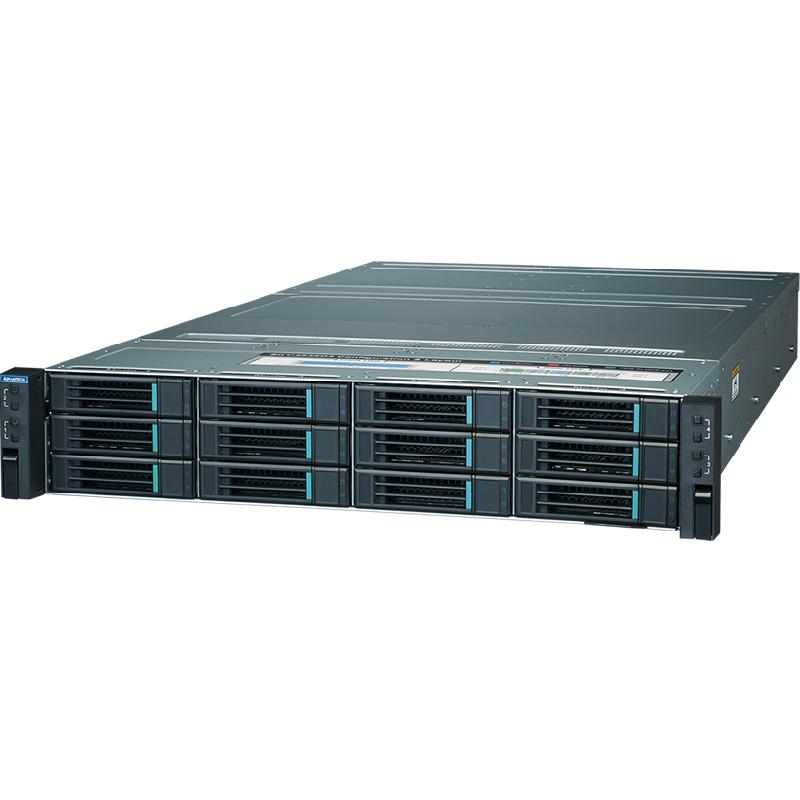

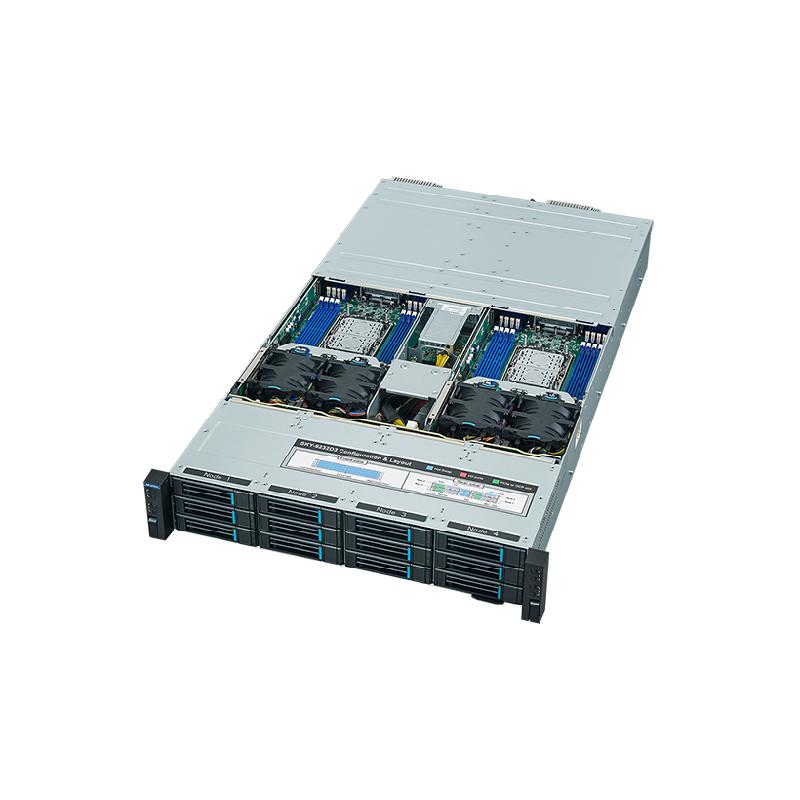

研華SKY-9232D3 2U 4Node Rackmount Server for Hyper-converged Infrastructure and Storage

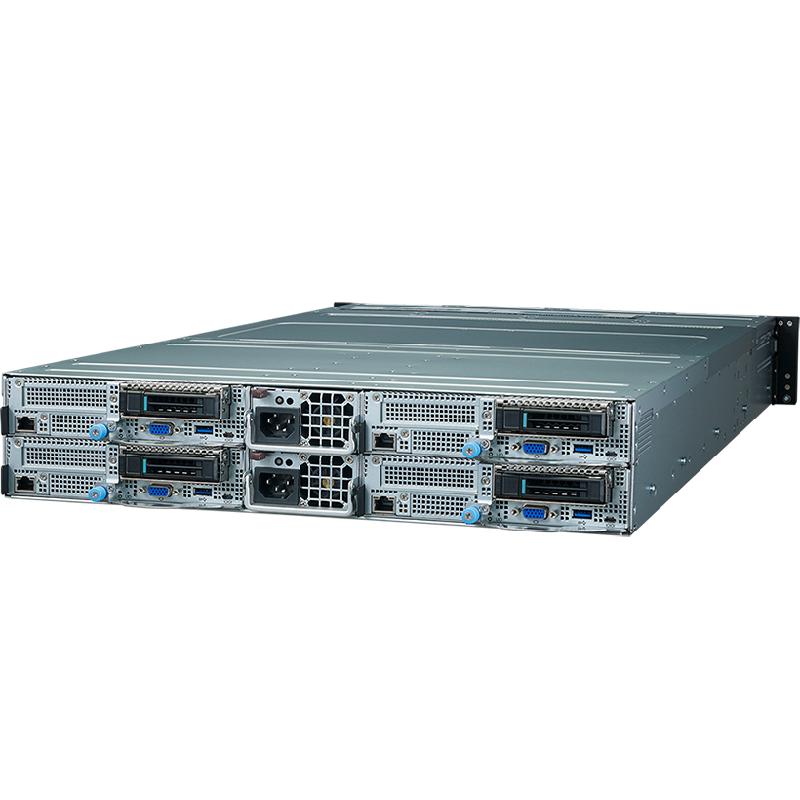

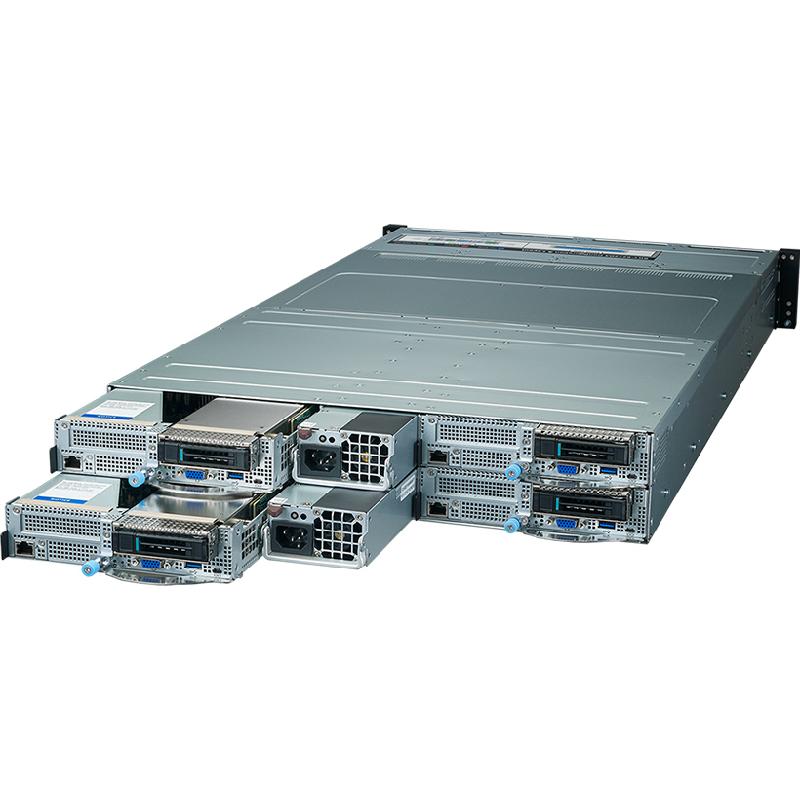

- Up to 4 Hot-Swappable CPU Node boards with single/dual Intel? Xeon? Scalable Processors
- Up to 16 DIMM slots DDR4 3200MHz RDIMM/LRDIMM 3DS (per Node)
- Flexible I/O configurations with up to 2x PCIe Gen4 x16 slots (half length, low profile) or 1xNVMe/SATA SSD + 1x PCIe x16 slot (per Node)(SKU depends)
- Support one PCIe Gen3 x8 OCP2.0 mezzanine (per Node)
- Optional 2xM.2 storage devices (per Node)

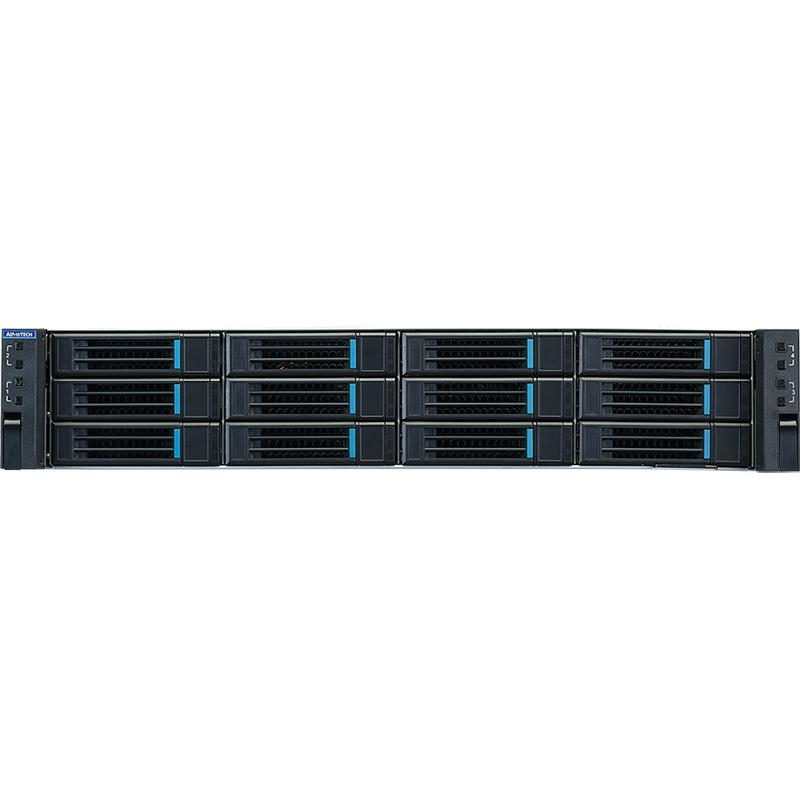

- Up to 12x 3.5” SATA storage on the system
- Optional hot swappable and redundant AC PSU
- Redundant FW images (Advantech BIOS and BMC)
- Onboard BMC (IPMIv2.0 compliant) with Web Interface, KVM and Redfish
